MikroTik Router¶

MikroTik routers run on their proprietary RouterOS. They can be configured via their local web interface (or WinBox), or the console.

Initial setup¶

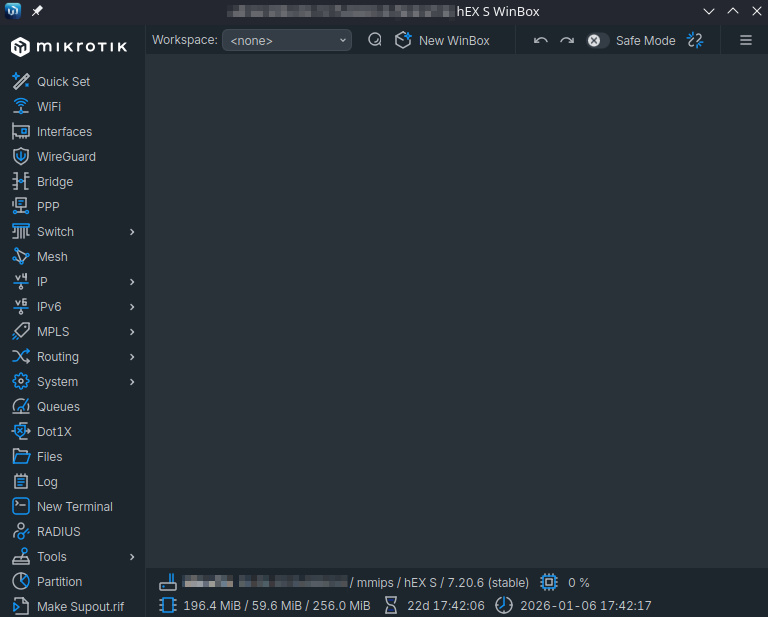

alt text — WinBox router configuration GUI

The first configuration I made was to the default password, changing it to something more complex. I then set the private IP address of the router, its subnet mask (/24), and the DHCP server range. I also made sure that it could renew a public IP address from the ISP. Once connected to the Internet, I updated the router to the latest firmware. Once the initial setup was complete, I plugged the wireless AP into the router so that the DHCP server could start distributing IP addresses over WiFi.

Be wary of Telnet access

Upon launching the MikroTik terminal, I was notified of an attempted breach into the router via Telnet from an unknown IP address -- so, to minimize the attack surface, I disabled that means of access to my router.

DMZ¶

In order to isolate my public-facing homelab server into its own DMZ, I created a dedicated VLAN for it and configured firewall rules to control the traffic going in and out of the two VLANs.

First, I isolated the Pi into its own DMZ (vlan20), where it cannot reach the other LAN devices located in the default VLAN (vlan0), minus a couple of exceptions. The firewall rules are simple: besides SSH and DNS requests, devices from vlan0 cannot communicate with the Pi on vlan20, and the Pi can only respond to said SSH/DNS requests from vlan0, but not initiate them. Lastly, I blocked inbound WAN DNS communications to the Pi so as to prevent potential DNS exploits. The correct order of these rules would look something like this:

Rule 0: Allow LAN to Pi SSH
Rule 1: Allow Pi to LAN SSH Return
Rule 2: Allow LAN to Pi DNS UDP
Rule 3: Allow LAN to Pi DNS TCP
Rule 4: Block WAN DNS UDP
Rule 5: Block WAN DNS TCP
Rule 6: Allow Pi to LAN DNS Return UDP
Rule 7: Allow Pi to LAN DNS Return TCP
Rule 8: Block Pi VLAN to LAN

And the VLAN topology looks like this:

graph LR
  %% Internet
  WAN[Internet]

  %% Router
  MT[MikroTik Firewall]

  %% Core
  LAN["**VLAN 0**<br/>10.0.0.0/24<br/>*Home Devices*"]
  PI["**VLAN 20**<br/>10.0.20.100<br/>*Pi Server*"]

  %% Flows
  WAN ---|A| MT
  MT --- LAN

  MT --x|A| PI
  LAN -->|B| PI
  PI x--x|D| LAN
  PI -->|C| LAN

  %% Box styling
  style LAN stroke:#ff6666,stroke-width:2px,fill:none
  style PI stroke:#ff6666,stroke-width:2px,fill:none
  style MT stroke:#ff6666,stroke-width:2px,fill:none
  style WAN stroke:#3399ff,stroke-width:2px,fill:none

  %% Link styling
  linkStyle 2 stroke:#D7584B,stroke-width:2px
  linkStyle 3 stroke:#28a745,stroke-width:2px
  linkStyle 4 stroke:#D7584B,stroke-width:2px
  linkStyle 5 stroke:#28a745,stroke-width:2px

A. WAN -> Pi: Block DNS (Rule 4, 5)

B. LAN → Pi: SSH/DNS only (Rule 0 [SSH]; 2, 3 [DNS])

C. Pi → LAN: SSH/DNS return only (Rule 1 [SSH]; 6, 7 [DNS])

D. LAN <-> Pi: Block all (Rule 8)
